PRODUCT DESCRIPTION

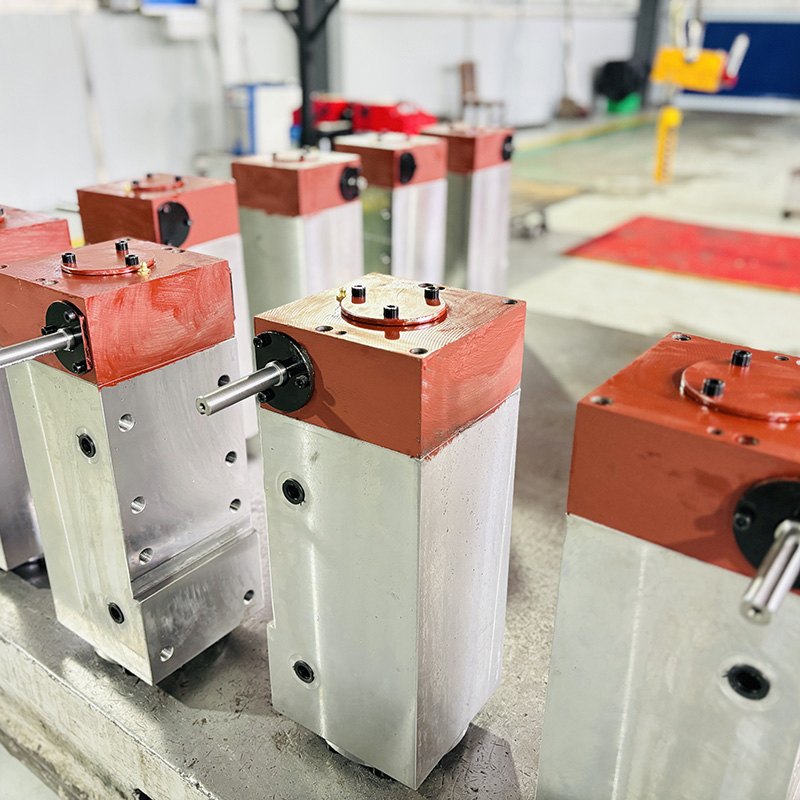

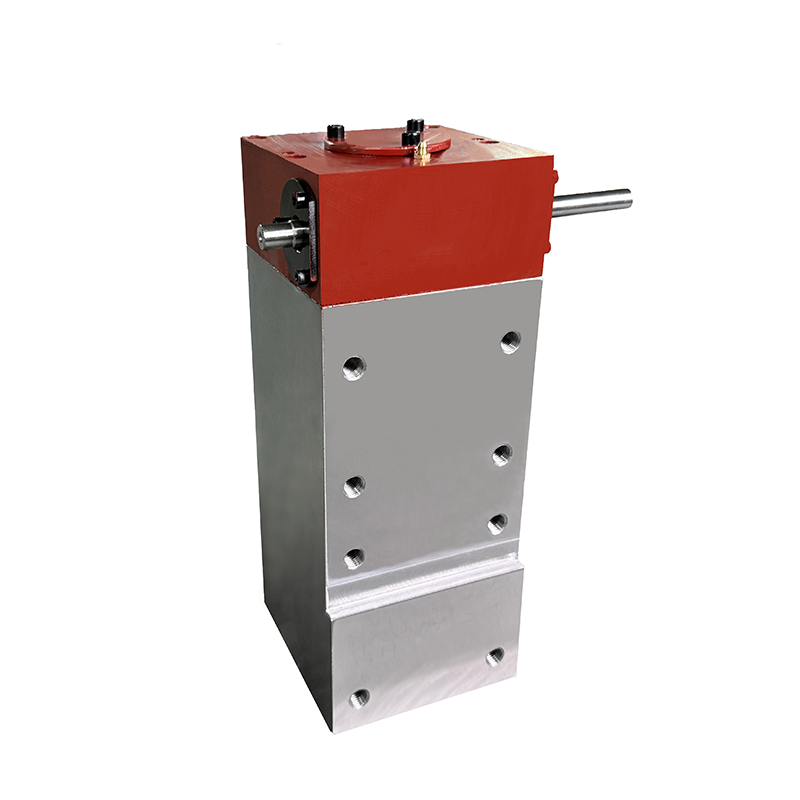

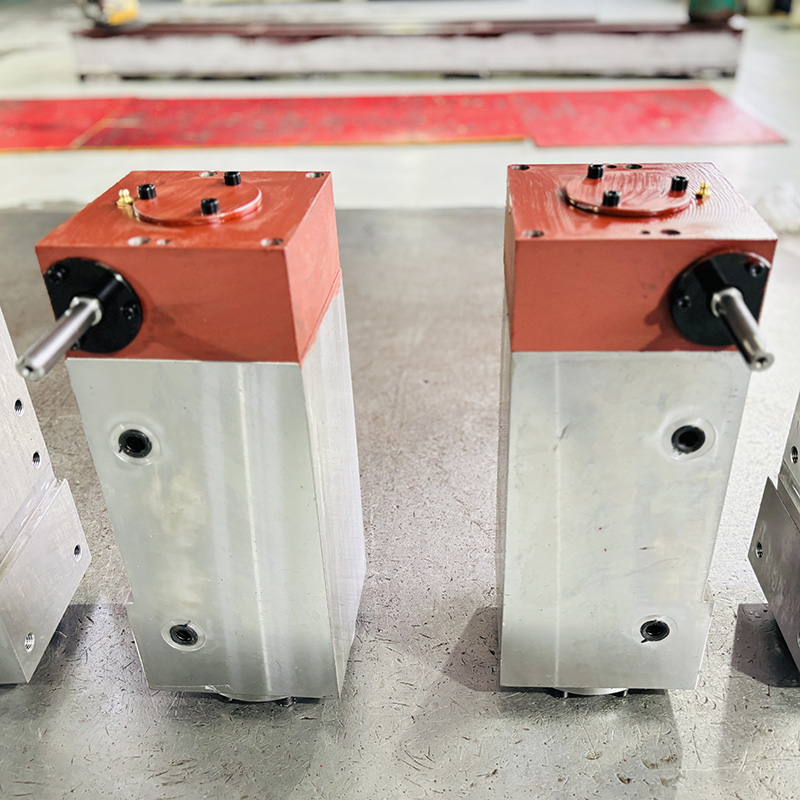

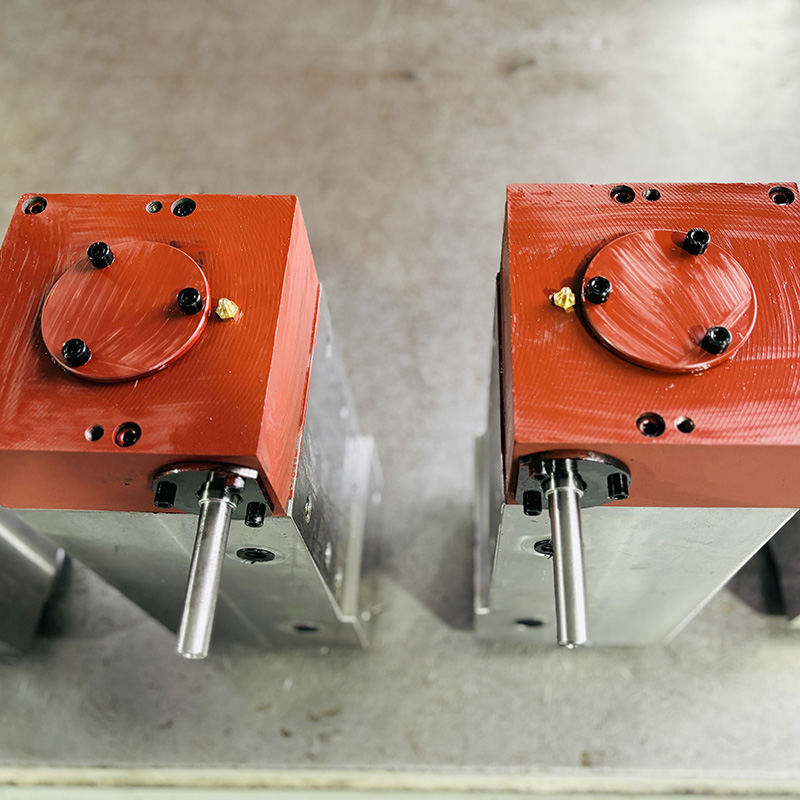

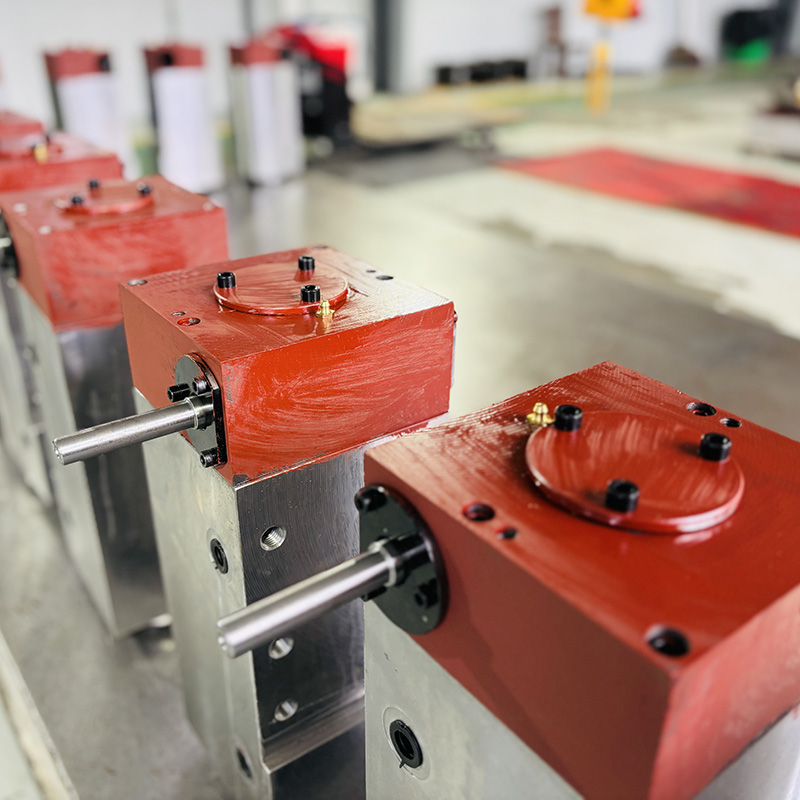

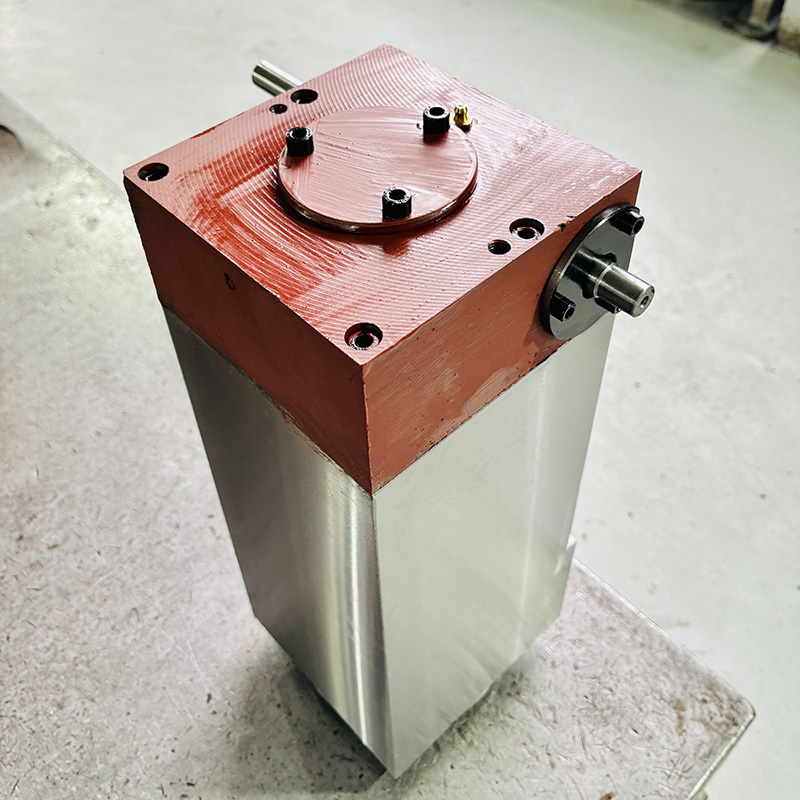

As the fundamental power unit for conventional press brakes, our Ordinary Press Brake Hydraulic Cylinders are engineered to deliver durable and cost-efficient performance across a wide spectrum of metal bending tasks. These cylinders are manufactured using high-precision machining processes, ensuring consistent quality and reliable operation in demanding industrial environments. They are designed to provide stable force output with minimal internal resistance, contributing to consistent bending accuracy and extended machine life. Furthermore, we offer professional customization services to tailor bore size, stroke, mounting style, and port positions, guaranteeing optimal compatibility and seamless integration with various press brake models.
KEY FEATURES&ADVANTAGES
1.Proven Durability & Cost-Effectiveness: Built with robust materials and simple design for long-term reliability, offering an excellent balance of performance and value for conventional applications.
2.High-Precision Machining & Full Interchangeability: Components within the same model are produced to exacting tolerances, allowing for complete part interchangeability to simplify maintenance and reduce repair costs and downtime.
3.Stable & Smooth Operation: Ensures consistent performance cycle after cycle, minimizing vibration and contributing to precise bending results and overall equipment stability.
4.Leak-proof Design with Quality Seals: Utilizes high-quality sealing rings to prevent hydraulic fluid leakage, maintaining operational integrity and cleanliness while enhancing durability.
5.Tailored Customization Services: Provides flexible adaptation of key specifications to meet specific machine requirements, ensuring a perfect fit and reliable performance for diverse press brake models.
TECHINCAL SPECIFICATIONS
Bending Force(t) | Bore Diameter (mm) |
Piston Rod Diameter(mm)
|
Stroke(mm)
|
40T | 110 | 105 | 120 |
63T | 140 | 130 | 120 |
80T | 160 | 150 | 120 |
100T | 180 | 170 | 160 |
125T | 180 | 170 | 160 |
160T | 200 | 190 | 200 |
200T | 240 | 224 | 200 |
250T | 260 | 240 | 250 |
300T | 300 | 280 | 250 |
400T | 350 | 330 | 250 |
500T | 380 | 360 | 300 |
1. Installation Clearance: When installing the cylinder, strictly follow the inlet/outlet position dimension to ensure sufficient operational clearance between the cylinder and the machine slider, preventing interference during operation.
2. Interface Compatibility: The connections between the variable frequency motor, encoder synchronous pulley, and the stroke adjustment worm must be precisely matched to ensure correct transmission and synchronization.
3. Stroke Requirement: The working stroke of the hydraulic cylinder must be designed longer than the maximum stroke of the bending machine slider to avoid mechanical failure or damage.
4. Pressure Limit: The hydraulic system pressure must never exceed the cylinder’s rated pressure. Contact our technical department for applications requiring higher pressure.
5. Operating Speed: The recommended operating speed is below 80mm/s under normal conditions. For higher speed requirements, clearly state the technical specifications in the order.
6. External connection dimensions can be customized upon request.
