PRODUCT DESCRIPTION

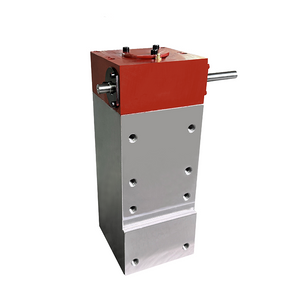

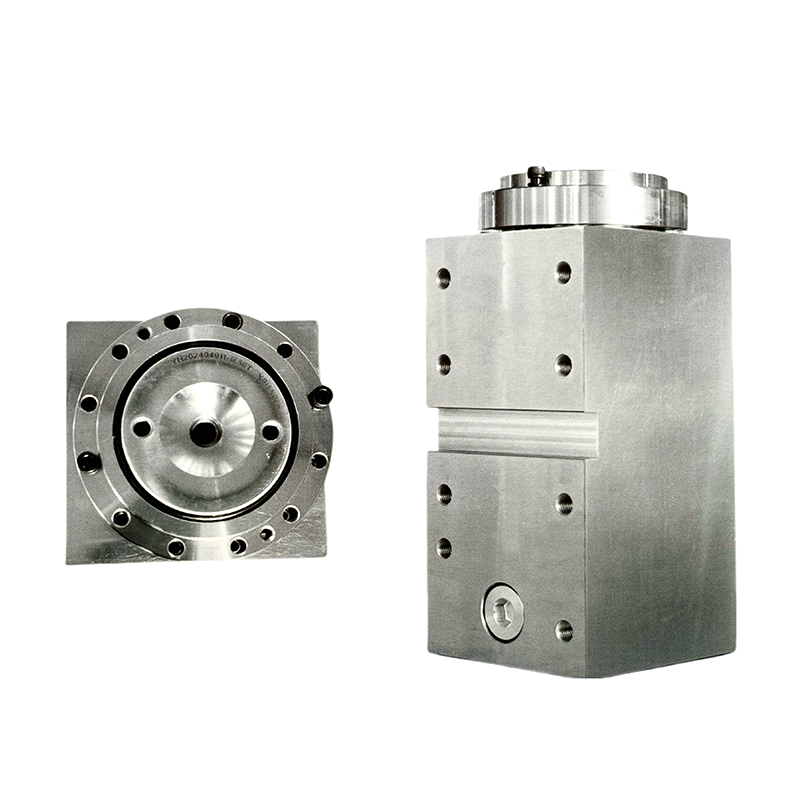

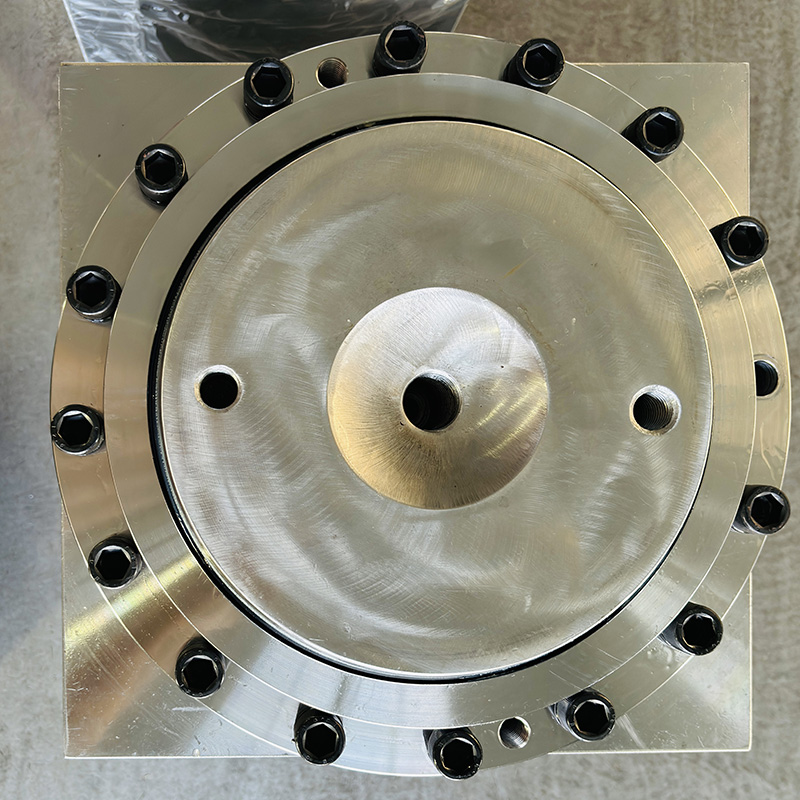

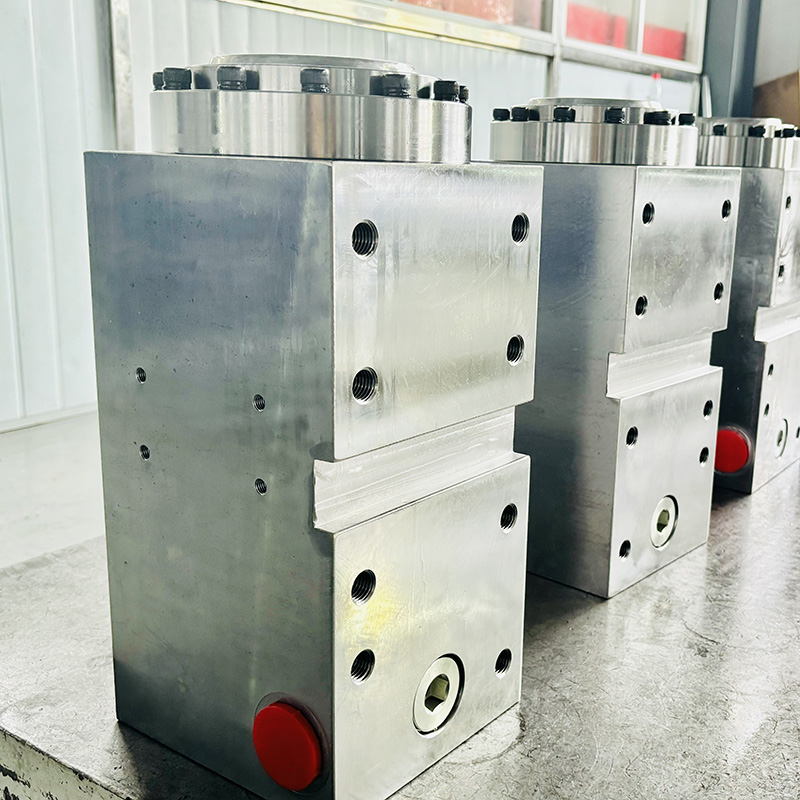

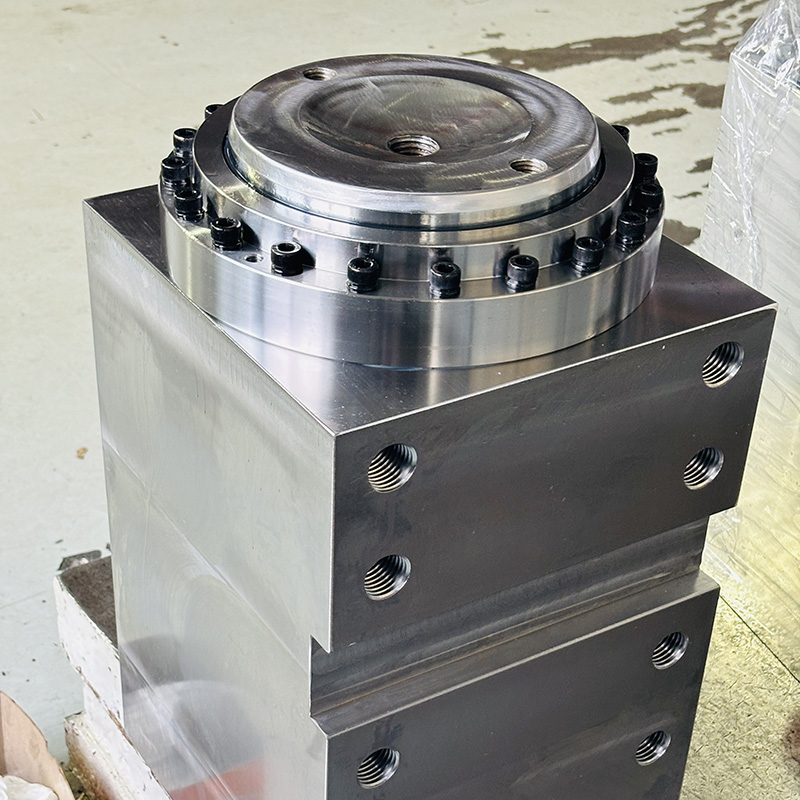

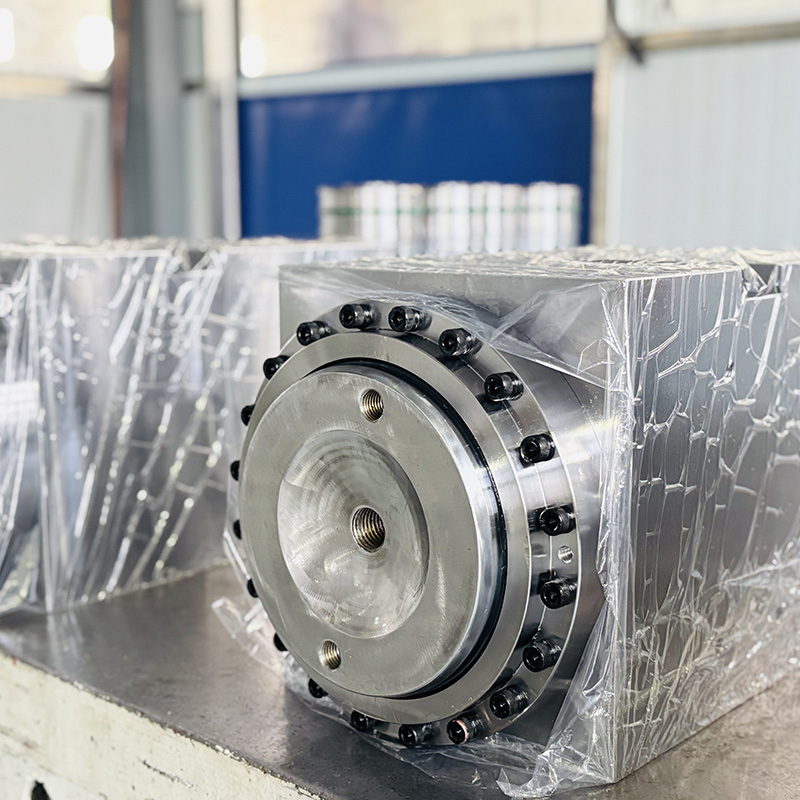

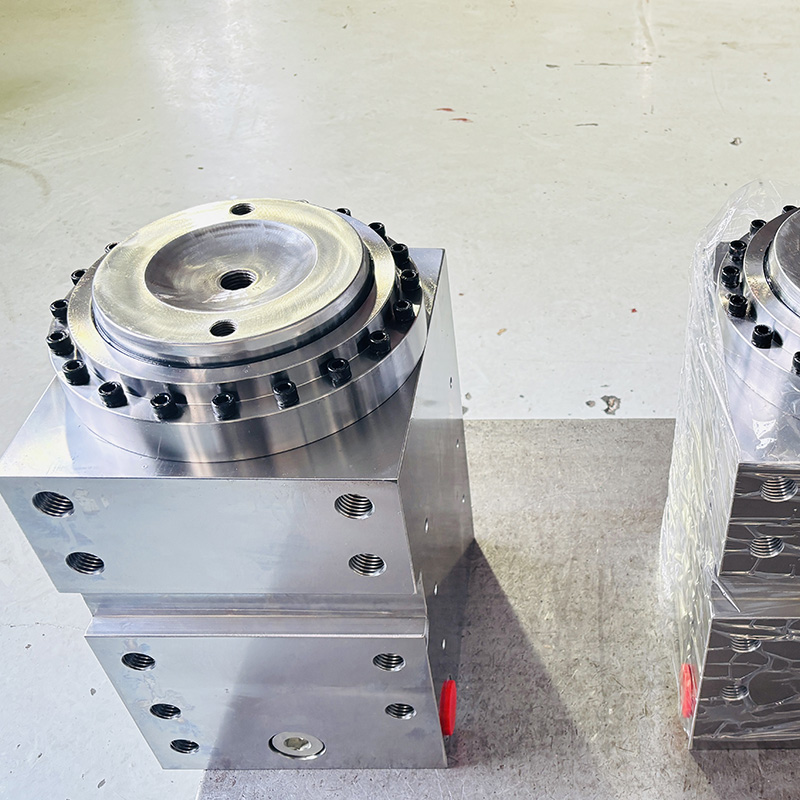

Designed as the core power source for CNC press brakes, our Engineered as the core power component for CNC press brakes, our Hydraulic Cylinders play a vital role in delivering the force and precision required for advanced metal forming and bending applications. Manufactured to ultra-strict tolerances using high-grade materials and precision machining processes, these cylinders ensure exceptional performance, reliability, and compatibility with a wide range of press brake systems. They are designed to provide smooth, consistent operation under high-load conditions, contributing significantly to the overall accuracy and productivity of the bending process. Furthermore, we offer tailored customization options to seamlessly adapt our cylinders to specific machine models and operational requirements.
KEY FEATURES&ADVANTAGES
1.Precision Machining : Components within the same series are manufactured to ultra-tight tolerances, allowing full interchangeability to simplify maintenance and reduce downtime.
2.Smooth Operation & High Accuracy: Low internal resistance ensures exceptionally smooth piston movement, which enhances bending precision and overall machine stability.
3.Leak-proof design& Superior Sealing: Equipped with internationally renowned seal brands, our cylinders maintain long-term leakage-free performance even under high pressure.
4.Extended Service Life: Designed for durability, the cylinders deliver a service life of over 3 years under normal conditions, with potential for further extension through proper maintenance.
5.Customized Solutions: Tailored designs are available to meet specific press brake model requirements, ensuring optimal fit, function, and compatibility across various applications.
TECHINCAL SPECIFICATIONS
Bending Force(t) | Bore Diameter (mm) | Piston Rod Diameter(mm)
|
Stroke(mm)
|
40T | 90 | 85 | 150 |
63T | 120 | 115 | 170 |
80T | 135 | 130 | 200 |
100T | 151 | 145 | 200 |
125T | 172 | 165 | 200 |
160T | 190 | 180 | 200 |
200T | 220 | 210 | 200 |
250T | 240 | 230 | 250 |
400T | 310 | 290 | 320 |
500T | 340 | 320 | 320 |
600T | 380 | 360 | 335 |
800T | 440 | 420 | 400 |
1000T | 500 | 480 | 400 |
1. Ensure sufficient working clearance between the machine slide block and the hydraulic cylinder based on the provided oil port dimensions.
2. Compatible motor and decoder interfaces must match the input and output shafts of the stroke adjustment worm gear.
3. The cylinder's working stroke exceeds the maximum stroke of the bending machine slider—overstroke usage is strictly prohibited.
4. System pressure must not exceed the cylinder's rated pressure. For special requirements, please consult our technical team.
5. Standard operating speed is ≤80mm/s. Custom speeds can be specified in the order technical requirements.
6. External connection dimensions can be customized upon request.
7. Optional encoder base or micro switch base available to suit specific needs.
